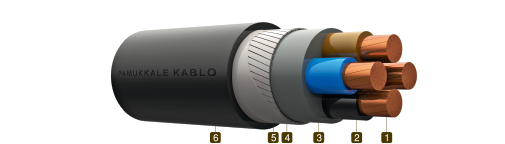

CONSTRUCTION

1 Copper conductor (class 1-2)
2 PVC insulation
3 PVC Bedding
4 Galvanized flat steel wire
5 Galvanized steel tape
6 PVC outer sheath

SPECIFICATIONS

Code: NYFGY
Standards: VDE 0271
Rated Voltage: Uo/U=0.6/1 kV

APPLICATION

Due to armour in the structure, these cables are resistant to mechanical compulsions and can be used under hard working condition places such as industrial plants, power centres etc. internally, externally, underground or in cable ducts.

DOWNLOAD PDF FILE FOR INFORMATION OF PHYSICAL AND ELECTRICAL PROPERTIES
